Spitznas Axial Grinder 1 5080 0010
€ 1.450,00
Product details
Hydraulic Peanut Grinder – 6 mm Collet
This powerful hydraulic grinder is designed for demanding grinding applications and is particularly suitable for underwater work and heavy-duty metal grinding. The compact and lightweight design ensures excellent handling while delivering high performance in harsh environments.
The tool is equipped with a 6 mm collet, making it compatible with a wide range of grinding and deburring accessories. Thanks to its robust hydraulic drive, it provides reliable operation even in continuous industrial use.
Typical applications include metal fabrication, steel construction, mechanical engineering, and commercial diving operations where precision grinding and durability are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Order No. | 1 5080 0010 |
| Energy Source | Hydraulic |
| Operating Pressure | 90 – 140 bar |
| Actuation | Lever valve |

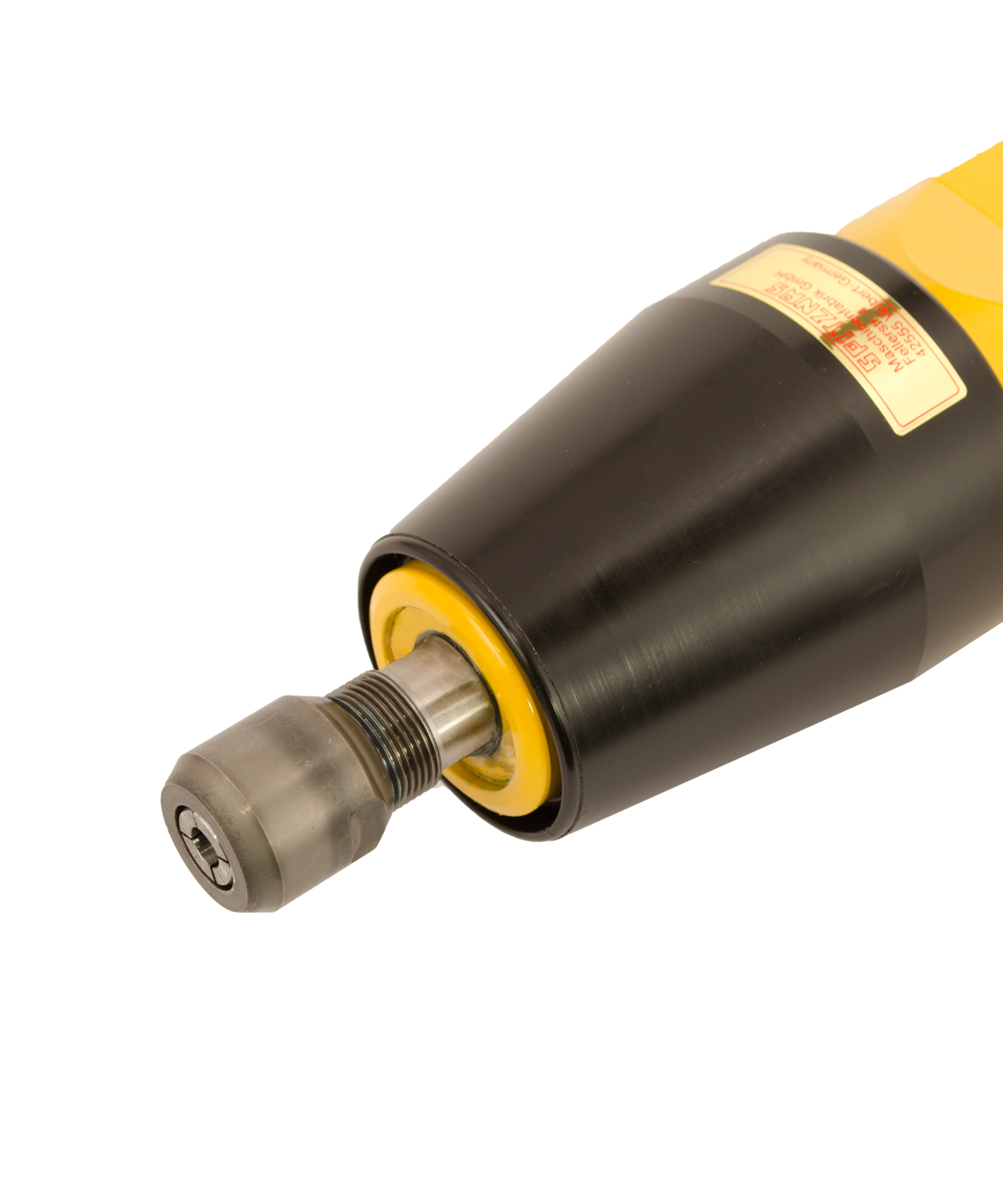

| Tool Holder | Collet Ø 6 mm |
| Volume Flow | 10 – 30 l/min |
| Power | 0.8 kW |
| Free Speed | 11,500 rpm |
| Length | 274.5 mm |

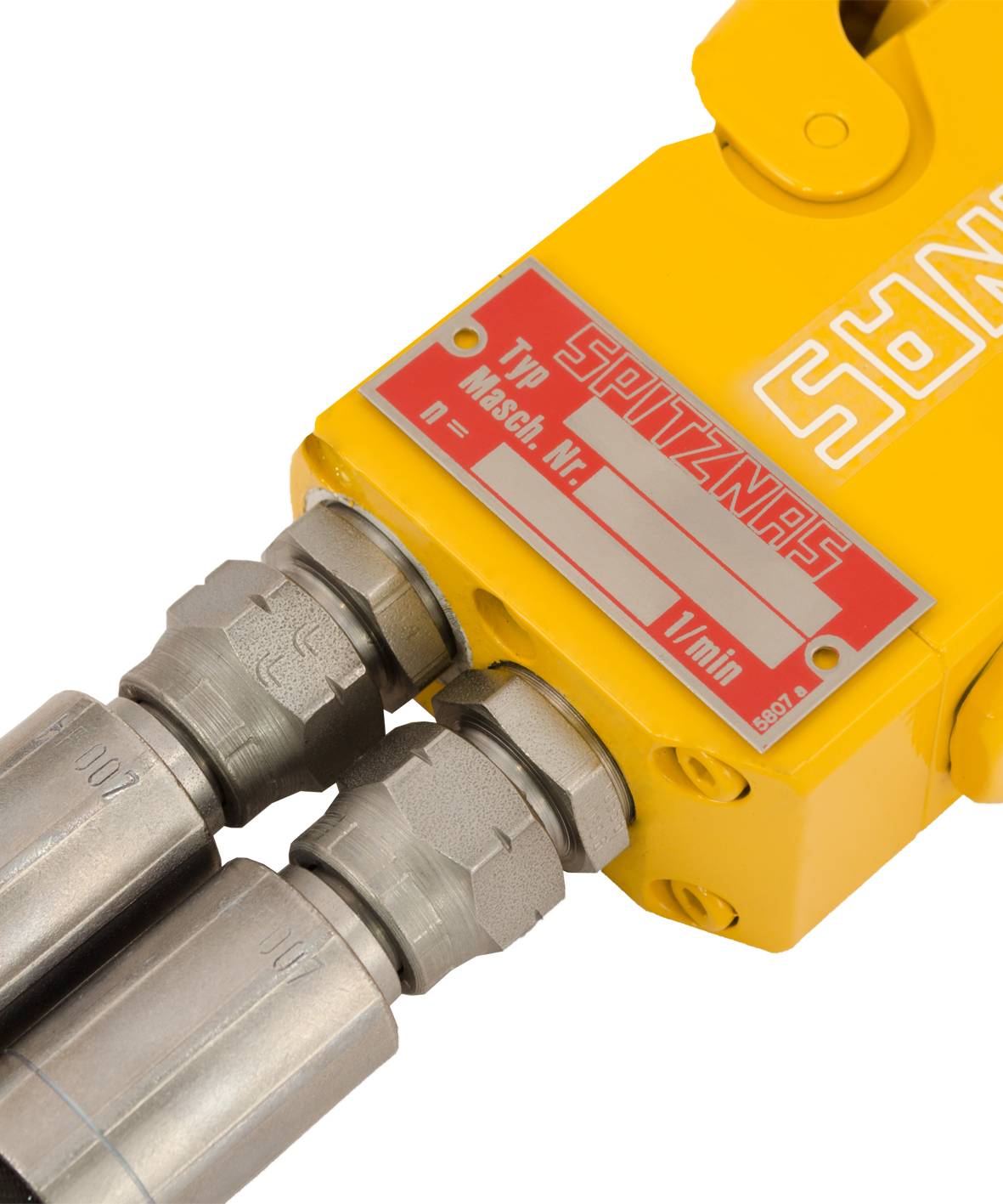

| Connection | SAE Port No. 8 (3/4×16 UNF-2B) |
| Hydraulic Hose Connection | Flat-Star A250-OM/OF-1/2” BSP |
| Hydraulic Medium | Hydraulic oil |
| Hydraulic Circuit Type | Open circuit |
| Oil Filtration | ISO 20/18/13 |
| Oil Temperature | -34 °C to +82 °C |
| Oil Viscosity | >13 centistokes |
| Noise Level (LpA) | 90.7 dB(A) |
| Noise Level (LWA) | 101.7 dB(A) |
| Vibration Level | < 2.5 m/s² |
| Weight | 1.6 kg |
